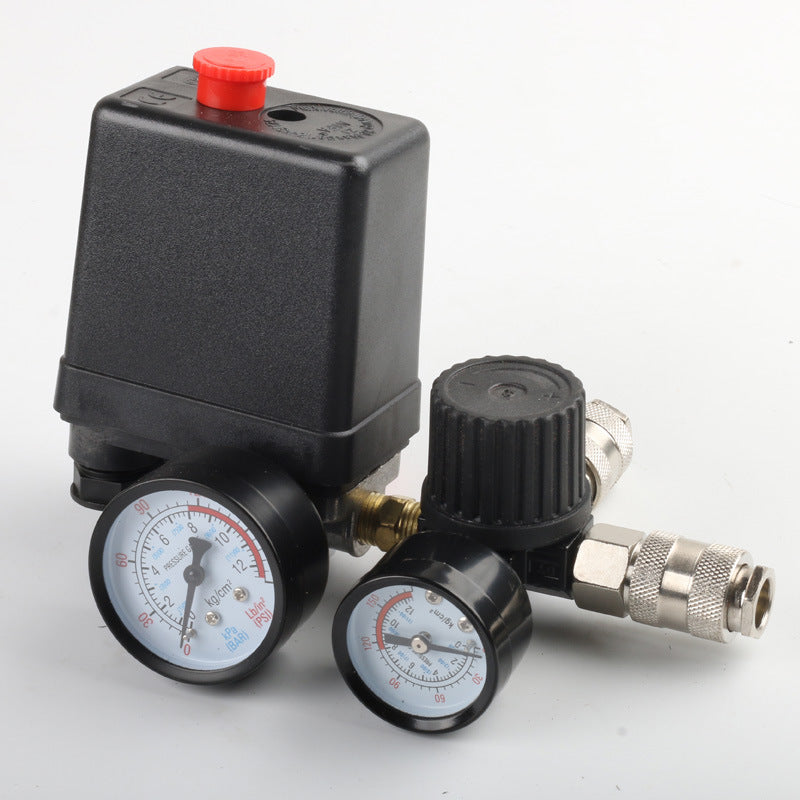

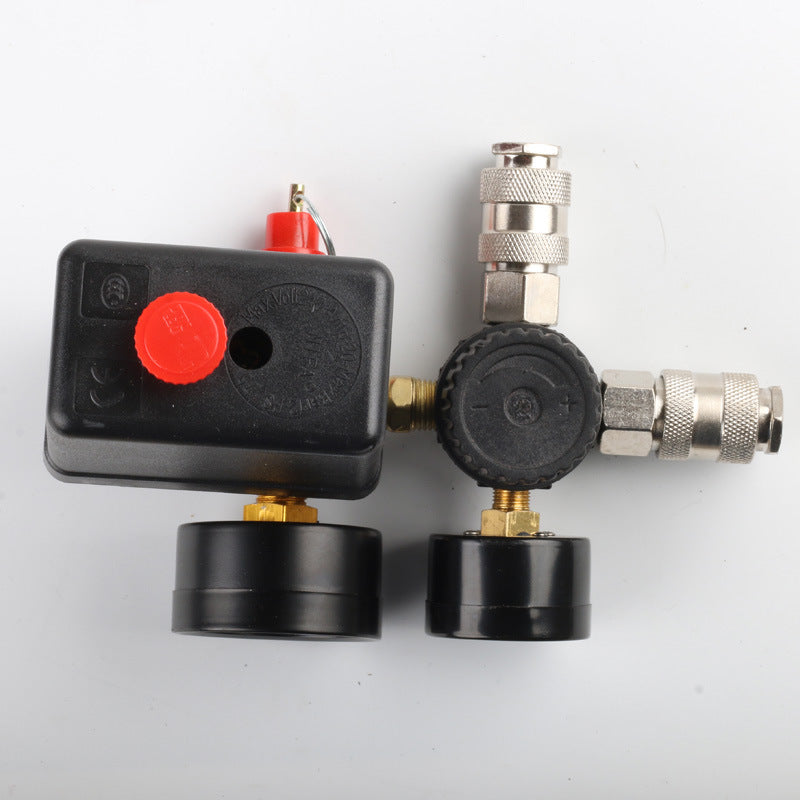

European Style Air Compressor Pressure Regulating Valve
European Style Air Compressor Pressure Regulating Valve
Product information:
Switching pressure range: 0.5-0.8MPA (5-8BAR) (90-120PSI)
Printed on the switch box is: Max.Volt240-Amp.20-MaxBar12-PSI175
The size of the small box is: 185*100*110mm
Rated voltage: 220/380V
Exhaust pipe: 6MM
Contact method: normally closed
Connector size: 12MM 1/4 inch
Outer diameter of pressure relief port: 9.5MM
Maximum current: 20A
Working pressure: 5-8KG
Life: 80000 times
Specifications 220V switch, 380V switch
The net weight of a set of products: 635 grams, the gross weight of the product with a small box: 720 grams

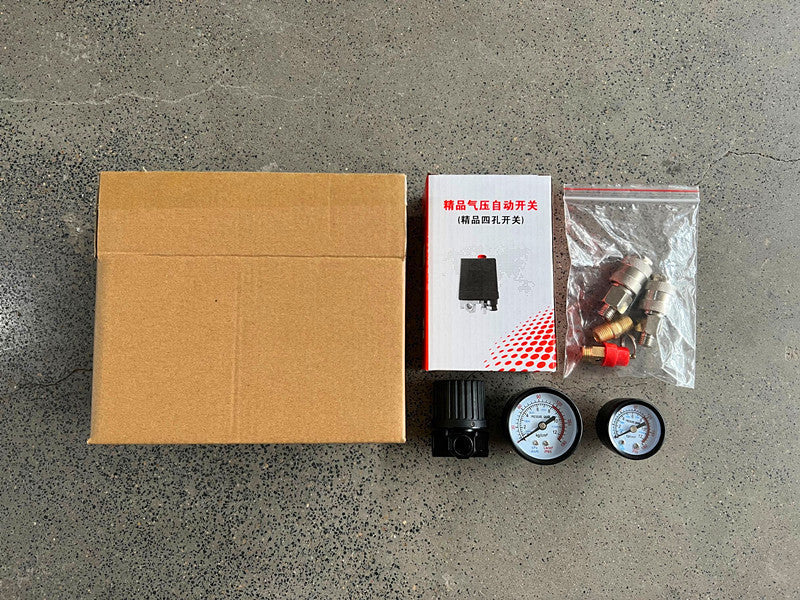

Packing list:
Pressure Switch*1
