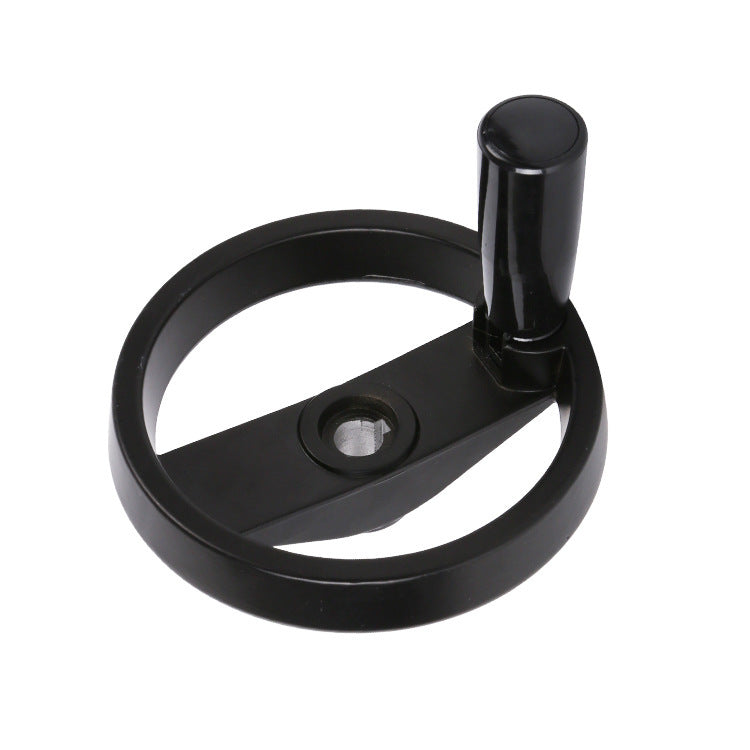

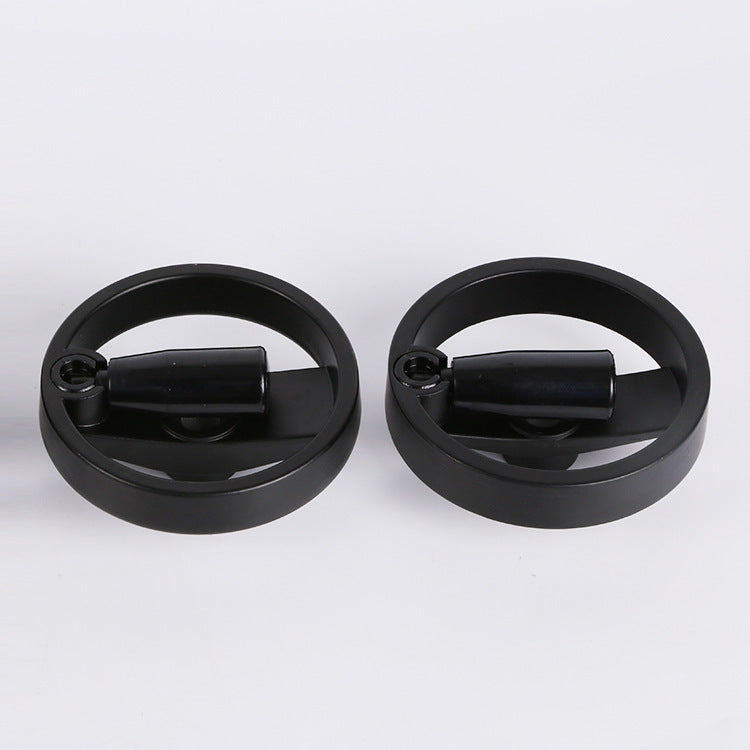

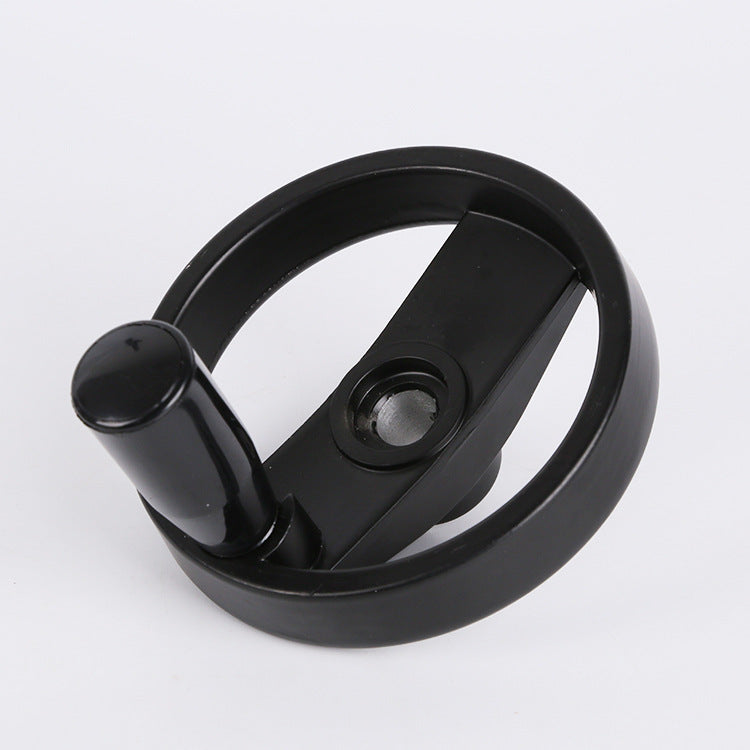

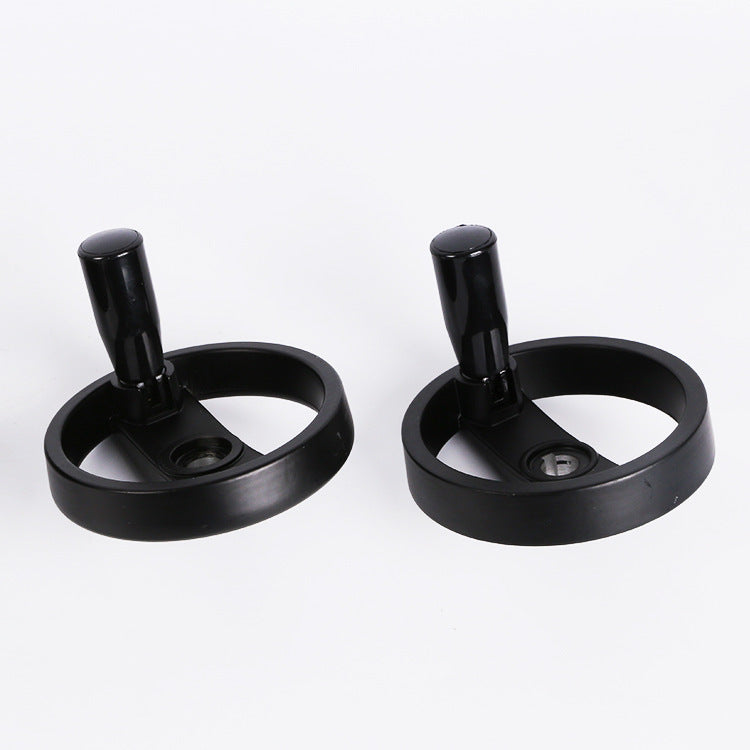

Foldable Aluminum Alloy Double Spoke Hand Wheel
Foldable Aluminum Alloy Double Spoke Hand Wheel
Product information:
Whether standard parts: non-standard parts
Material: Alloy
Applicable machine tool: bending machine
Specification
[A] Hollow 100*12 healthy slot 4,
[B] Hollow 125*12 healthy slot 4,
[C] Hollow 160*16 healthy slot 5,
[D] Hollow 200*18 healthy slot 6,
[E]Solid 100* 12 healthy slot 4,
[F] solid 125*12 healthy slot 4,
[G] solid 160*12 healthy slot 5
, [H] solid 160*16 healthy slot 5,
[I] solid 200*18 healthy slot 6,
[ J]Solid 100*10 dot wire 5,
[K]Solid 100*12 dot wire 6
,[L]Solid 125*12 dot wire 5,
[M]Solid 125*14 keyway 5,
[N]Various non-standard orders do
Size Information：
|
Aluminum alloy |
Diameter of handwheel |
Handwheel thickness |
Border thickness |
Handle length |
Bore |
Inner hole depth |
Outer diameter of shaft hole |
|---|---|---|---|---|---|---|---|
| 12 x100 | 100mm | 39mm | 20mm | 50mm | 12mm | 20mm | 27mm |
| 12 x125 | 125mm | 42mm | 22mm | 63mm | 12mm | 20mm | 30mm |
| 16 x160 | 160mm | 48mm | 24mm | 80mm | 16mm | 20mm | 36mm |
| 18x200 | 200mm | 54mm | 27mm | 80mm | 18mm | 26mm | 42mm |
Packing list
Foldable machine tool handwheel x1
